PMI STEEL Incoloy Alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum, copper and titanium. This nickel steel alloy's chemical composition is designed to provide exceptional resistance to many corrosive environments,that is designed to last, even under extreme operating conditions. This powerful nickel alloy is considered the forerunner of alloys containing molybdenum, the inclusion of which lends the material additional strength.In particular, in the chemical processing industry, Incoloy 825 is similar to alloy 800 but has improved resistance to aqueous corrosion.

Steel Grade:

Alloy 825 / N08825 / Wr. 2.4858, ASTM B564, SAE J 470c-1976

PMI STEEL Incoloy 825 Bar

Nickel Alloy 825 / N0 8825 / Wr. 2.4858

Product Description

PMI Incoloy 825 Bar (Alloy 825 / N08825 / Wr. 2.4858, compliant with ASTM B 564 and SAE J 470c-1976 standards) is a nickel-iron-chromium alloy specifically designed for use in harsh and corrosive environments. The nickel content is sufficient to resist chloride ion stress corrosion cracking. Nickel, along with molybdenum and copper, provides resistance to reducing acids, including sulfuric and phosphoric acids, as well as seawater. Molybdenum also contributes to resistance against pitting and crevice corrosion, while the high chromium content enhances resistance to a range of oxidizing agents, such as nitric acid and nitrates. Proper heat treatment can stabilize the alloy with titanium, preventing intergranular corrosion sensitization. This product exhibits exceptional corrosion resistance and oxidation performance, with excellent mechanical properties that allow it to perform outstandingly under high-temperature and high-pressure conditions. It is suitable for various industries, including chemicals, marine applications, and energy sectors, such as phosphoric acid evaporators, pickling tank heaters, hooks and equipment, drive shafts, and tankers.

Material Properties

- Corrosion Resistance: PMI Incoloy 825 Bar effectively resists a variety of corrosive media such as sulfuric acid, phosphoric acid, and seawater, making it particularly suitable for high-temperature acidic environments.

- Strength and Toughness: It offers excellent tensile strength and fracture toughness, capable of withstanding extreme working conditions.

- Weldability: The alloy exhibits good weldability, compatible with various welding methods, and maintains high strength after welding.

Key Chemical Composition

- Nickel (Ni): 38.0% - 46.0%

- Chromium (Cr): 19.5% - 23.5%

- Iron (Fe): Balance

- Manganese (Mn): ≤ 1.0%

- Molybdenum (Mo): 2.5% - 3.5%

- Copper (Cu): 1.5% - 3.0%

Mechanical Properties

- Tensile Strength: ≥ 650 MPa

- Yield Strength: ≥ 290 MPa

- Elongation: ≥ 30%

- Hardness: ≤ 200 HBW

Physical Properties

- Density: 8.14 g/cm³

- Melting Point: 1375°C - 1425°C

- Thermal Conductivity: 11.4 W/m·K

- Specific Heat Capacity: 0.9 kJ/kg·K

Key Performance Features

- High-Temperature Stability: Maintains good mechanical properties in high-temperature environments.

- Oxidation Resistance: Exhibits significant resistance to oxidation at elevated temperatures.

- Wear Resistance: Demonstrates good wear resistance in specific applications, extending the lifespan of components.

Appearance

- Color: Silver-gray, with a smooth surface and good aesthetic quality.

- Size Specifications: Standard diameter range from 6 mm to 400 mm, with lengths customizable according to customer requirements, typically ranging from 1 m to 6 m.

Packaging Instructions

- Internal Packaging: Utilizes high-quality moisture-proof materials to ensure products remain unaffected by humidity during transport and storage.

- External Packaging: Each alloy bar is packaged in reinforced wooden crates for convenient storage and transport.

- Labeling: Each package is clearly labeled with product type, specifications, production batch number, and inspection certificate, ensuring traceability.

Product Application Scenarios

- Chemical Industry: Used in reactors, heat exchangers, and other equipment, capable of withstanding corrosive medium erosion.

- Marine Environment: An ideal material for marine platforms and vessels.

- Oil and Gas: Widely utilized in high-temperature and high-pressure applications, particularly in oil and gas transportation and processing equipment.

- Environmental Equipment: Exhibits exceptional performance in wastewater treatment and acidic solution processing.

Best-Selling Attributes / Specifications

- Popular Specifications: Alloy bars with diameters of 15 mm, 55 mm, and 110 mm are in high demand in the market.

- Custom Options: Customers can choose different lengths, diameters, and surface finishes based on specific requirements.

Comparative Advantages Over Other High-Temperature Alloys

- Compared to Inconel 625: PMI Incoloy 825 not only offers excellent corrosion resistance but is also competitively priced, suitable for a wider range of applications.

- Compared to Hastelloy C276: Provides similar corrosion resistance but performs outstandingly in various marine and chemical applications.

User Experiences

Etienne L., Project Leader, Frabco (France)

"After using PMI Incoloy 825 Rectangular Bars for our construction projects, I can confidently say they are the best competitive in the market. the durability of equipment significantly increased, maintenance frequency decreased, and production efficiency improved by 20%. The durability and strength of their products have surpassed our expectations, and their fast turnaround time aligns perfectly with our tight project schedules."

Desciption

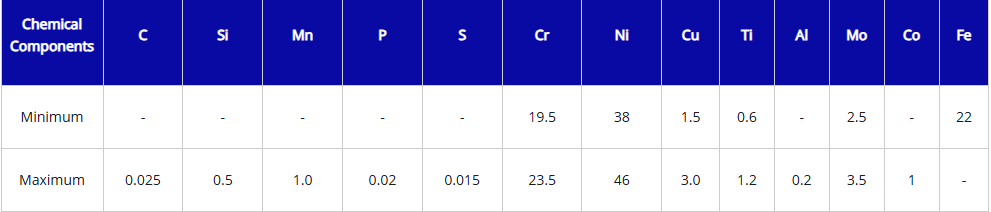

Incoloy 825 Chemical Component

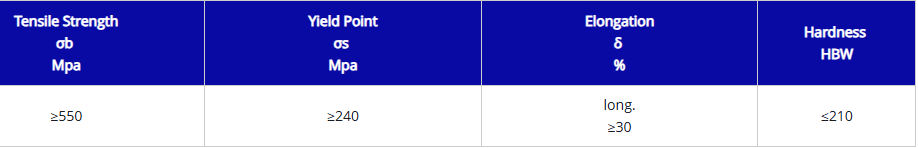

Incoloy 825 Mechanical Properties
