PMI STEEL Incoloy Alloy 800 is an alloy of nickel, iron and chromium. The alloy remains stable and maintains its austenitic structure even after prolonged exposure to high temperatures, making Incoloy 800 a widely used material for equipment requiring corrosion resistance, heat resistance, strength and stability up to 1500°F (816°C). Other properties of the alloy include high strength and resistance to oxidizing, reducing and aqueous environments. Alloy 800 has general corrosion resistance to many aqueous media and, due to its high nickel content, resists stress corrosion cracking.

Steel Grade:

Alloy 800/ N08800 / Wr 1.4876, ASTM B564, ASTM B407-1996

PMI STEEL Incoloy 800 Bar

Nickel Alloy 800 / N0 8800 / Wr.1.4876

Features :

- PMI Incoloy 800 alloy bars, known as Incoloy 800 (UNS N08800/W.Nr. 1.4876), are specifically designed for high-temperature and corrosive environments. This nickel-based alloy combines exceptional corrosion resistance with mechanical strength, making it an ideal material for various industrial applications.

- Working Temperature: The alloy can operate safely at temperatures up to 1500°F (816°C), making it suitable for extreme industrial conditions.

Key Chemical Composition :

The chemical composition of PMI Incoloy 800 alloy is expressed in weight percentage (wt%):

- Nickel (Ni): 30% - 35%

- Chromium (Cr): 19% - 23%

- Iron (Fe): 39% - 45%

Mechanical Properties :

According to ASTM B408 standards, the mechanical properties of Incoloy 800 alloy bars are as follows:

- Tensile Strength: ≥ 550 MPa (80 ksi)

- Yield Strength: ≥ 300 MPa (43.5 ksi)

- Elongation: ≥ 30% (in a 50 mm gauge length)

- Hardness: HB (Brinell Hardness) ≤ 250; HV (Vickers Hardness) ≤ 250

Physical Properties :

- Density: 8.05 g/cm³

- Melting Range: 1300 - 1400 °C (2372 - 2552 °F)

- Thermal Conductivity: 15.1 W/(m·K) (at 20 °C)

- Coefficient of Thermal Expansion: (20 - 100 °C) - 16.0 x 10^-6 /K

- Electrical Resistivity: 0.70 μΩ·m

Key Features :

- Corrosion Resistance:

Corrosion Resistance in Aqueous Media: Incoloy 800 exhibits excellent performance in various aqueous environments, particularly at elevated temperatures, with resistance to oxidation and chloride attack.

- Stress Corrosion Cracking Resistance: Due to its nickel content, this alloy resists stress corrosion cracking, making it well-suited for chloride environments.

- High-Temperature Performance:

Oxidation Resistance: In high-temperature environments, Incoloy 800 effectively prevents oxidation, thereby extending the lifespan of the material.

- Resistance to Carburization and Sulfidation: This alloy also offers excellent resistance to carburization and sulfidation, suitable for chemical processing and refining applications.

Comparison of Incoloy 800H and Incoloy 800HT :

- Incoloy 800HT features a higher chromium content compared to the standard 800 alloy, enhancing its oxidation resistance at elevated temperatures while maintaining stability below 800°F (427°C).

- Incoloy 800HT is designed for higher temperature applications, suitable for environments exceeding 1500°F (816°C), providing superior creep and stress rupture properties.

Compared to other high-temperature alloys (such as Inconel 600 and Incoloy 825), Incoloy 800 offers a cost advantage, making it more suitable for high-temperature and corrosion-resistant applications, particularly in oil and chemical environments.

Packaging Information :

- The alloy bars are internally packaged using high-quality moisture-proof materials, then securely sealed in robust wooden crates to withstand impact and crushing during transportation.

- Each wooden crate is labeled with clear details, including the type of alloy, specifications, production batch number, and inspection certification mark.

Applications :

- Chemical Equipment: Reactors: Incoloy 800 alloy bars are employed in the manufacturing of various chemical reactors, ensuring safety and stability during high-reactivity chemical processes.

- Heat Exchangers: When used in heat exchangers, they effectively enhance transfer efficiency and durability.

- Oil and Gas: Suitable for the construction of equipment in oil and gas extraction processes, ensuring long-term durability under high pressure and temperature conditions.

- Power Facilities:Applied in boiler components and turbine systems, ensuring operational performance under high-temperature and pressure conditions.

- Aerospace: Used in the manufacturing of specialized engine components and high-pressure combustion systems.

Industry Standards :

PMI Incoloy 800 alloy bars comply with international standards ASTM B564 and ASTM B407-1996, ensuring the reliability of products in various processes and performance metrics.

Best-Selling Attributes/Specifications :

- Diameter: Ranging from 10mm to 300mm, with particularly popular sizes from 25mm to 160mm, exhibiting significantly higher strength and high-temperature performance compared to standard materials.

PMI offers professional customization services, capable of providing alloy bars in various diameters, lengths, and shapes according to specific customer requirements, suitable for a variety of specialized applications.

User Experience:

Marco P., Senior Materials Engineer, EuroTech Industries (Germany) ***

“The nickel alloys from Foshan PMI have proven their value in our high-performance applications. The consistent quality and precision of their round bars and aluminum profiles have significantly enhanced our manufacturing process efficiency. Adhering to EN 10204 standards also assures us of their commitment to quality.”

Desciption

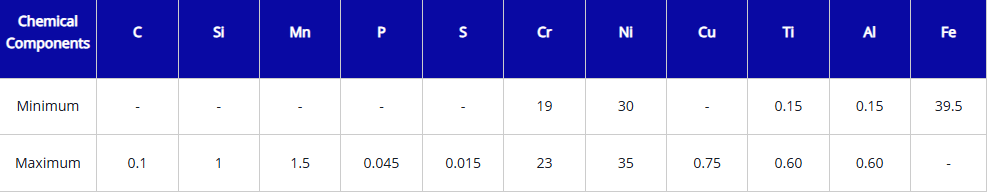

Incoloy 800 Chemical Component

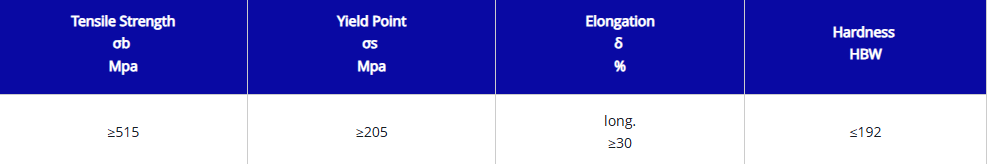

Incoloy 800 Mechanical Properties
